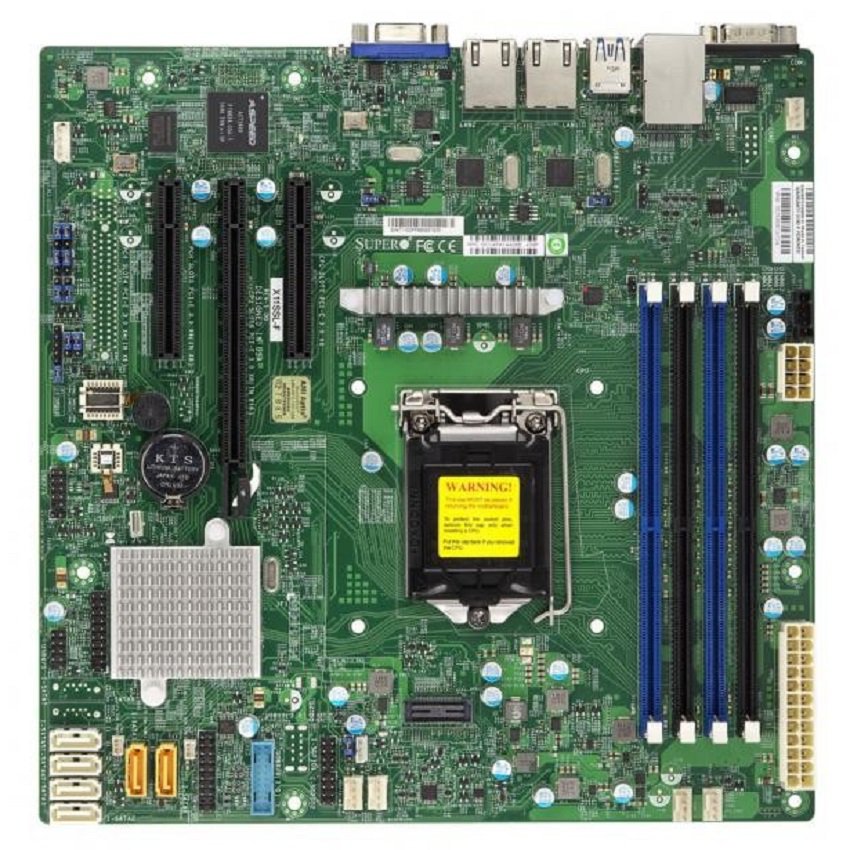

Mainboard Server workstation Supermicro MBD-X11SSL-o

Model

MBD-X11SSL-O

CPU hỗ trợ

Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.

Chipset

Intel® C232

Bộ nhớ trong

2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

Hỗ trợ tới 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

VGA onboard

Aspeed AST1400

Khe mở rộng

1 PCI-E 3.0 x8 (in x16 slot),

1 PCI-E 3.0 x8,

1 PCI-E 3.0 x4 (in x8 slot)

Chuẩn lưu trữ

Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Cổng giao tiếp

6 USB 2.0 ports (2 rear + 4 headers)

5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

1 VGA port

1 COM Port (1 rear)

TPM Header

LAN

Dual LAN with Intel® Ethernet Controller I210-AT

Kích thước

Micro-ATX (24.38cm x 24.38cm)
