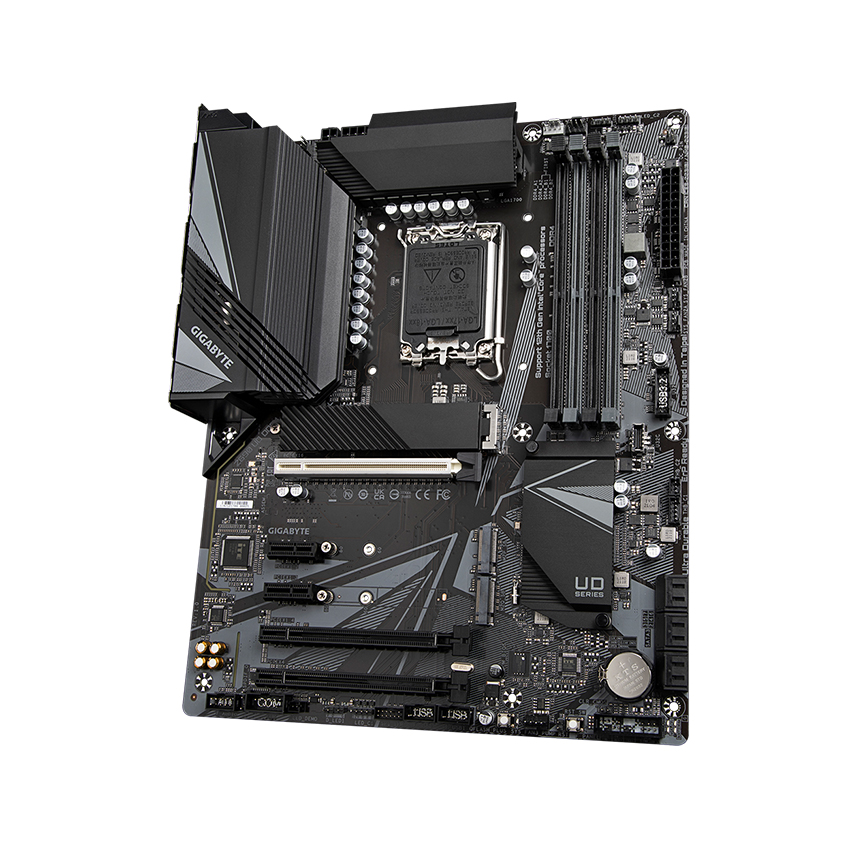

Mainboard Gigabyte Z690 UD D4 (Intel Z690, Socket 1700, ATX, 4 khe Ram DDR4)
Người dùng đánh giá | Tình trạng: Có hàng
- Socket: LGA 1700
- Số khe RAM: 4 (DDR4)
- Kích thước: ATX
Bảo hành: 36 tháng
Thông số kỹ thuật
CPU |
LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors L3 cache varies with CPU |
Chipset |
Intel® Z690 Express Chipset |
Memory |
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Onboard Graphics |
x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) 2 x PCI Express x1 slots |
Multi-Graphics Technology |
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
Storage Interface | CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
USB | Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper |
Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
I/O Controller |
iTE® I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
Bundled Software |
Norton® Internet Security (OEM version) Realtek® Gaming LAN Bandwidth Control Utility |
Operating System |
Support for Windows 10 64-bit |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
Đặc điểm nổi bật
Mainboard Gigabyte Z690 UD D4 (Intel Z690, Socket 1700, ATX, 4 khe Ram DDR4)
Mainboard Gigabyte Z690 UD DDR4 là bo mạch chủ thế hệ mới sử dụng socket LGA1700 hỗ trợ tối đa cho các CPU Intel Gen 12 với thiết kế VRM kỹ thuật số 16 + 1 + 2 pha trực tiếp, Tản nhiệt VRM siêu hiệu suất, PCIe 5.0, 3 x M.2 PCIe 4.0 với bộ bảo vệ nhiệt, LAN 2.5GbE, USB-C 3.2 Thế hệ thứ 2 và rất nhiều các công nghệ xịn sò khác.
Tính năng nổi trội
- Hỗ trợ bộ vi xử lý dòng Intel Core thế hệ thứ 12
- Kênh đôi DDR4 không có bộ đệm ECC, 4 DIMM
- Thiết kế VRM kỹ thuật số trực tiếp 16 + 1 + 2 với giai đoạn nguồn 60A* và tụ điện polyme Tantali
- Tản nhiệt VRM Ultra Performance
- Mạng LAN 2,5GbE với trình quản lý băng thông độc quyền
- 3 x M.2 NVMe PCIe 4.0 x4 cực nhanh với hệ thống bảo vệ nhiệt mở rộng
- SuperSpeed USB 3.2 Gen 2x2 TYPE-C mang lại tốc độ truyền tải lên đến 20Gb / giây
- RGB FUSION 2.0, hỗ trợ dải LED và dải LED RGB có thể định địa chỉ
- Quạt thông minh 6 có nhiều cảm biến nhiệt độ, đầu cắm quạt lai với FAN STOP
- Q-Flash Plus Cập nhật BIOS mà không cần cài đặt CPU, bộ nhớ và card đồ họa.
